Specifications
-
0 in
Height
-
0 in
Interior Headroom
-
0 in
Exterior Width
-
0 lbs
Gross Vehicle Weight Rating

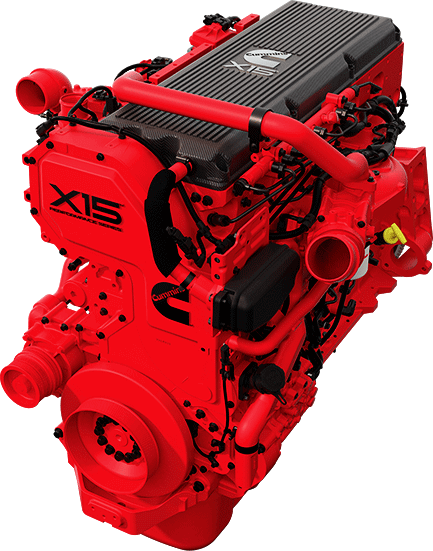

Engine / Cummins ISX
605bhp
1,950lb/ft torque
200gallons
-
Transmission
Allison HD4000MH Six-Speed Auto
-
Axle Ratio
4.27
-
Tires
Front axle & tag axle: Michelin XZA 365/70R22.5 Load Range L
Drive axle: Michelin XZA-2 315/80R22.5 Load Range L
-
Brakes
Air Disc with 6-channel ABS/ATC
-
Suspension
ZF active suspension system
Steer axle: ZF independent
Drive axle: ZF wide base
Tag axle: ZF active steer
-
Alternator
12-volt 500 amp
-
Batteries
House: Six type-8D AGM sealed w/ PulseTech Auto equalization
Chassis: Three Group 31 AGM sealed w/ PulseTexh Auto equalization
-
Steering
ZF w/ variable ratio power steering EasiSteer electronic steering assist
-
Inverter
Dual Outback 2800-watt pure sine wave
-
Electrical Service
2 Legs @ 90-amp with Surge Guard automatic protection
-
Generator
20 Kilowatt
-
Gross Axle Weight Rating (Front)
20,000lbs
-
Gross Axle Weight Rating (Drive)
28,600lbs
-
Gross Axle Weight Rating (Tag)
16,000lbs
-
Fresh-water Capacity
Standard: 143 gallons
Optional: 184 gallons
-
Holding-tank capacity
Standard: 143 gallons
Optional: 184 gallons
